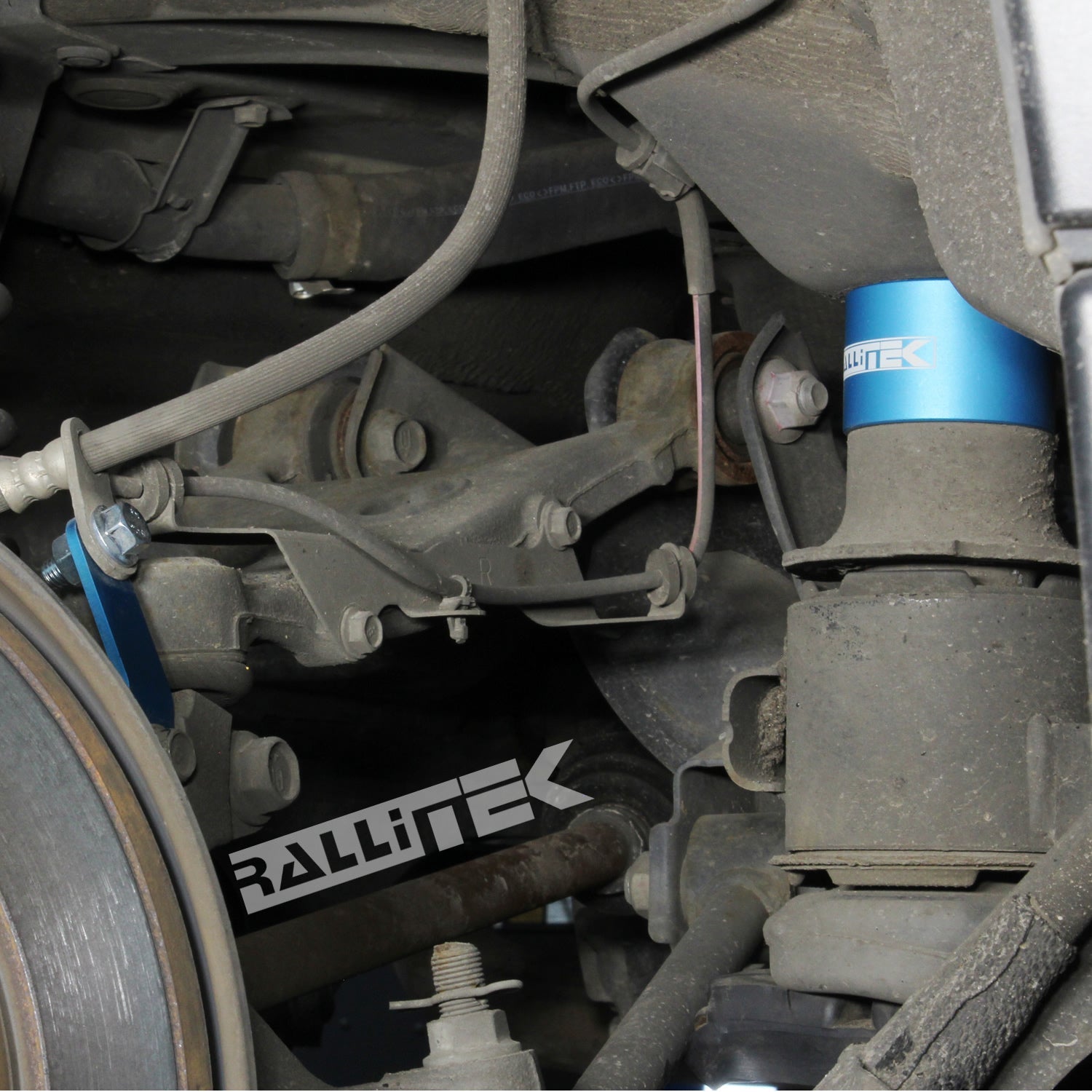

RalliTEK Subframe Drop Kit with blue anodized aluminum spacers for the Subaru Crosstrek

RalliTEK Subframe Drop Kit

$ 499.00 CAD
In Stock
Ready to order
Backorder
Out of Stock

Subaru Crosstrek

2013
2014
2015
2016
2017
2018
2019
2020
2021
2022
2023
2024
2025
2026

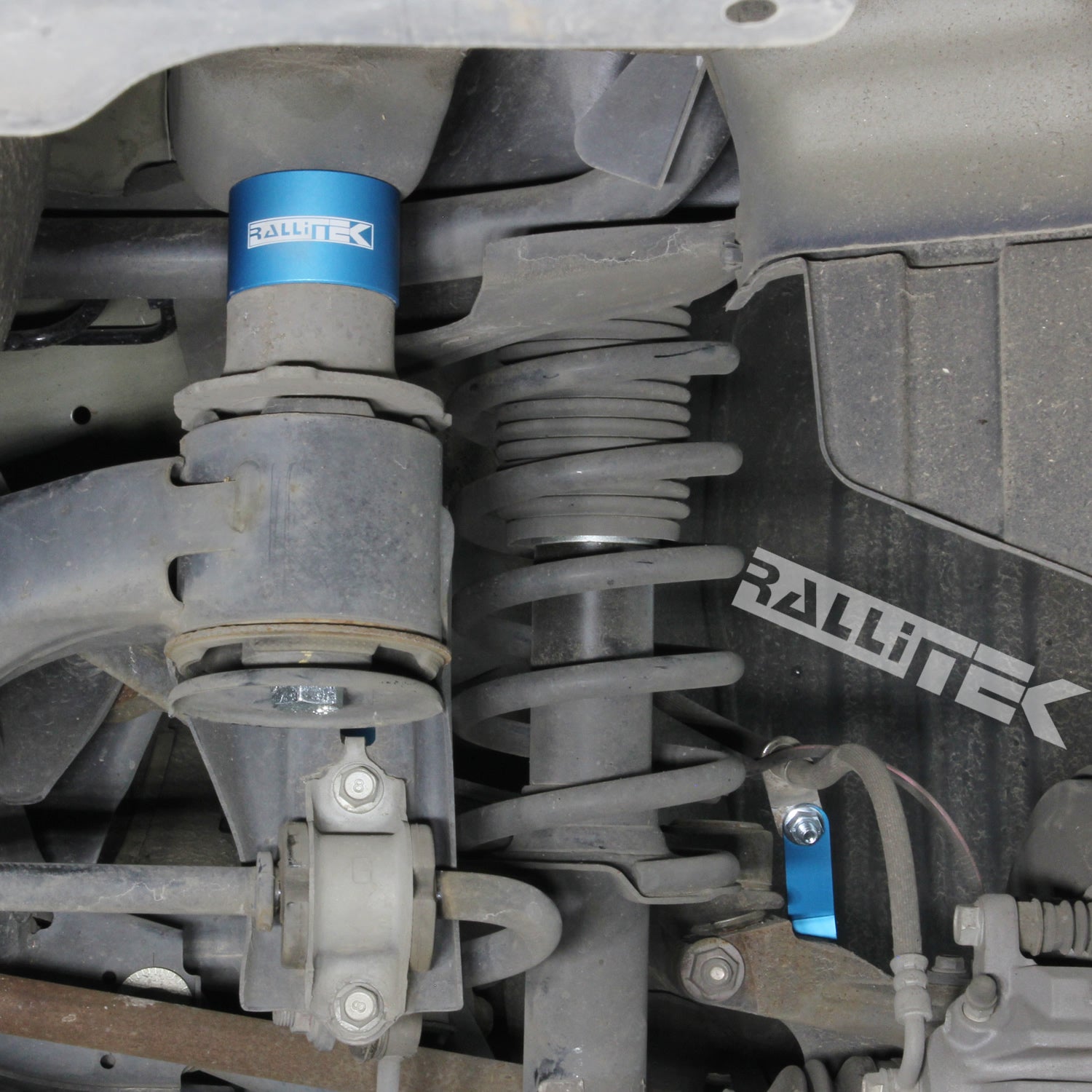

Once a Crosstrek is lifted past about an inch, the rear subframe sits too high for an alignment to bring camber and toe back into spec, and the rear tires drift away from the center of the wheel openings. The RalliTEK Subframe Drop Kit uses anodized aluminum spacers to lower the rear subframe about 1.5 inches, with brake line extension brackets and Grade 8 stainless hardware in the box. The 2018-2026 Crosstrek kit also adds two rear adjustable endlinks, while the 2013-2017 kit is the subframe drop on its own. It is a bolt-on install that suits Alberta gravel and winter-trail setups where the lift is already on and the rear end needs to be set up properly. This kit is for lifted vehicles only and is not a lowering kit for a stock Crosstrek. Canada-wide shipping from Flat 4 Offroad in Calgary.

Details

  • Drops the rear subframe about 1.5 inches to restore camber and toe adjustment range on lifted vehicles
  • Re-centers the rear tires in the wheel openings

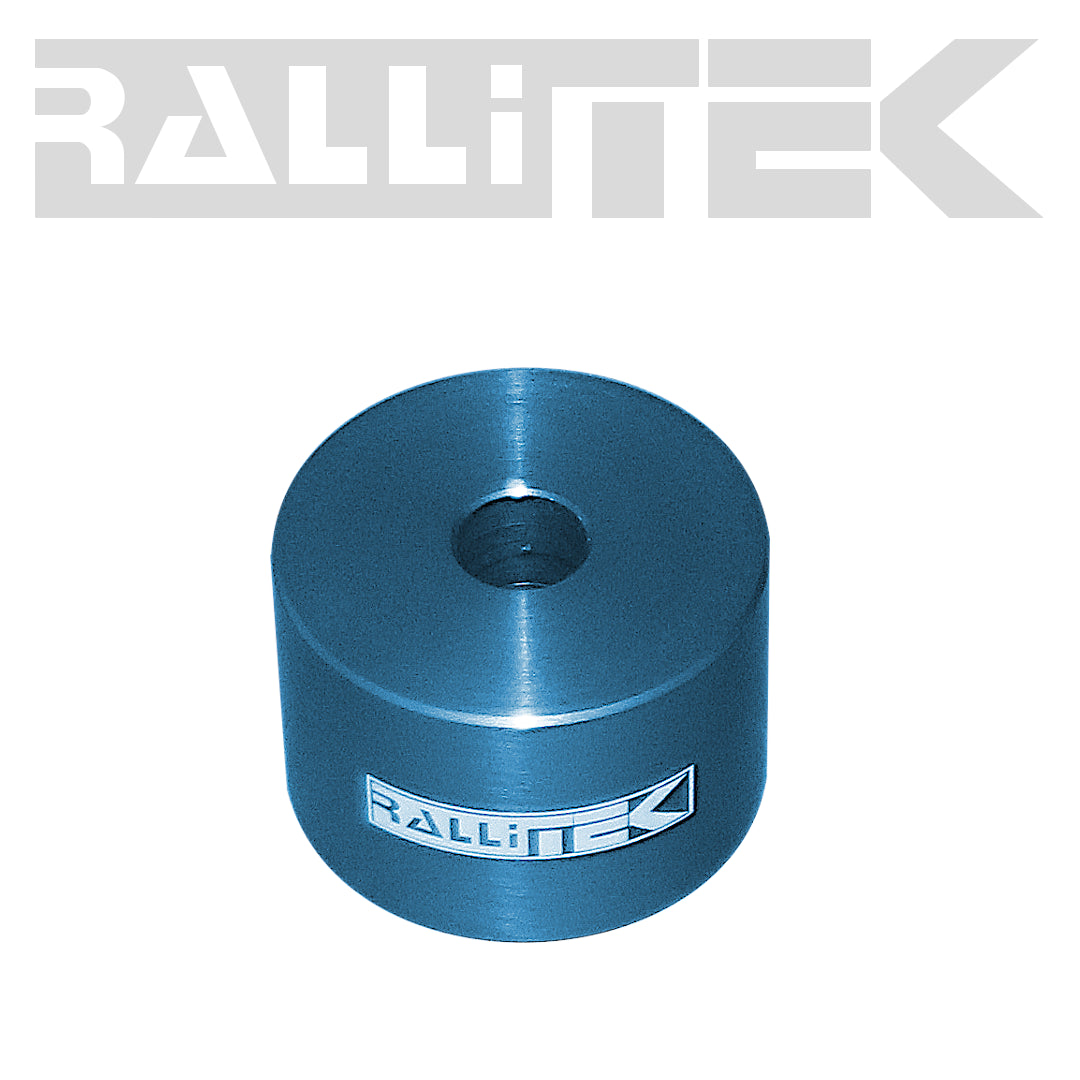

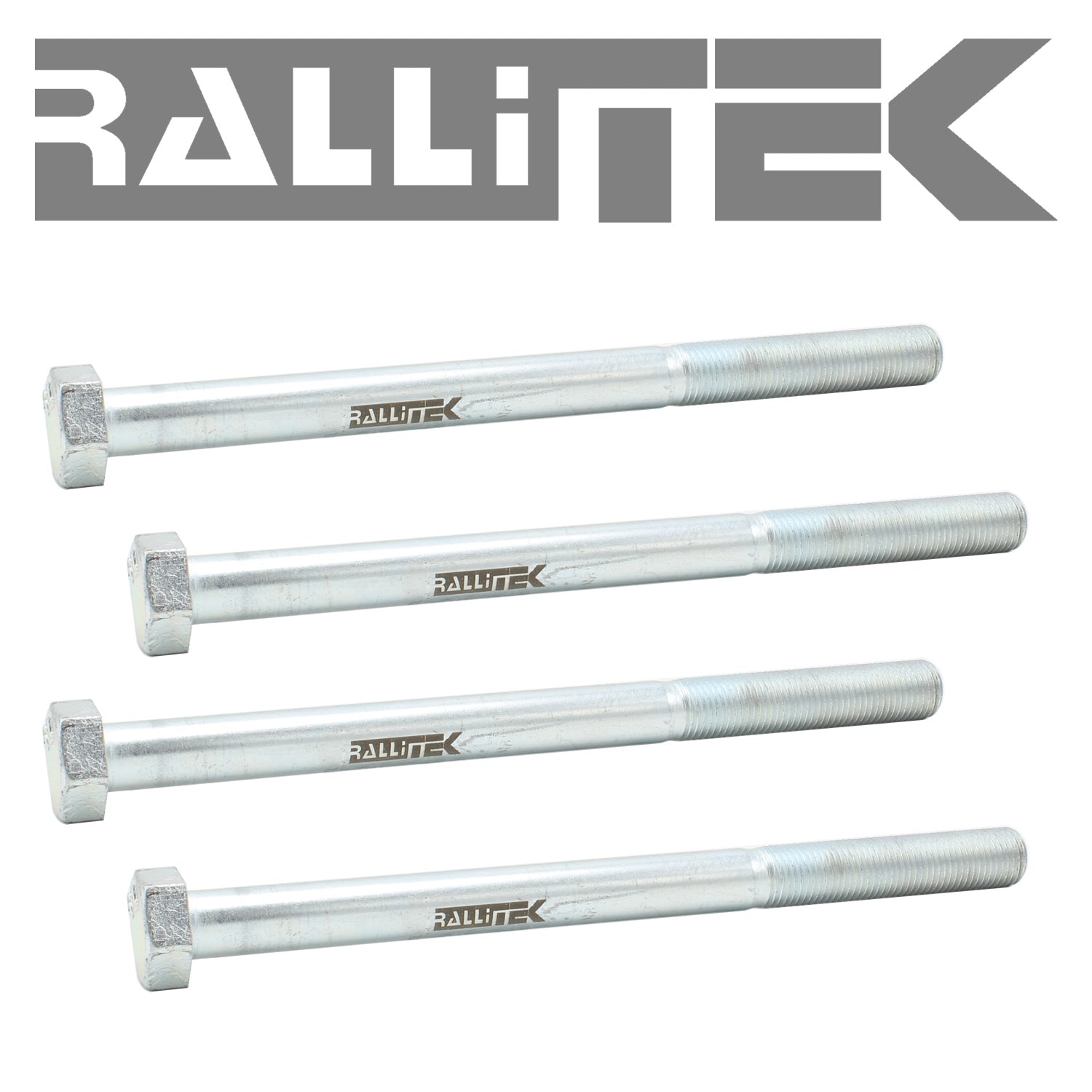

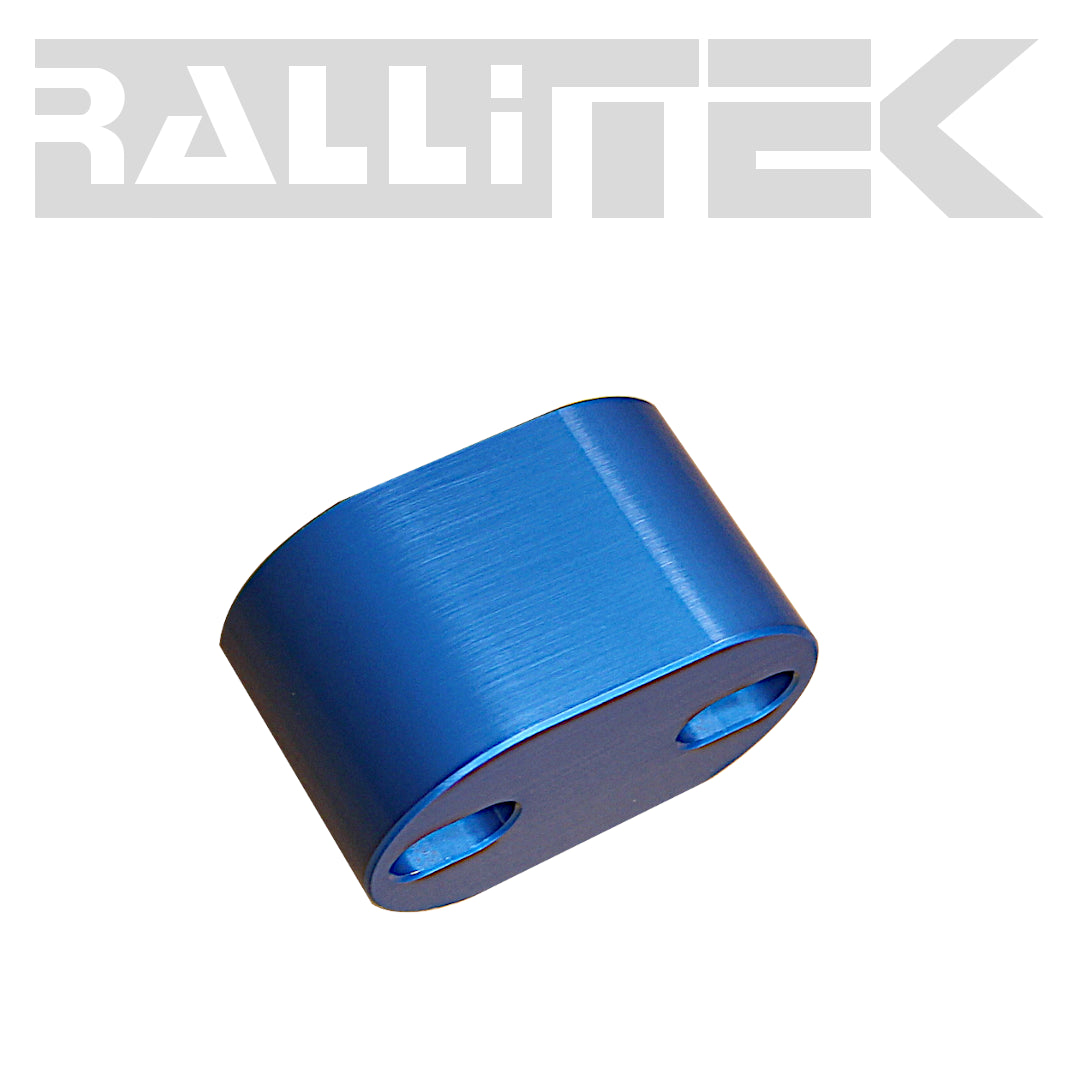

  • Anodized aluminum spacers with Grade 8 stainless hardware

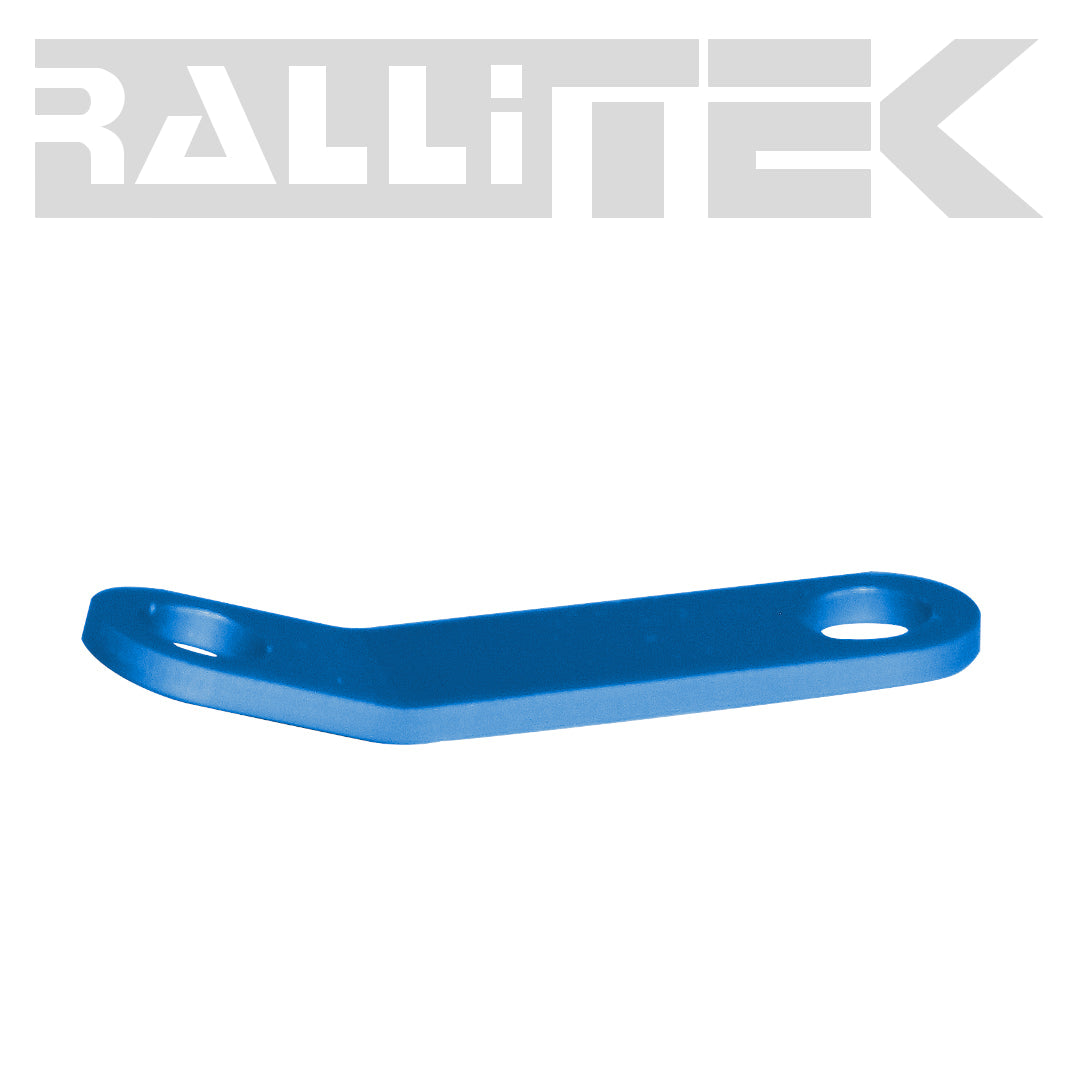

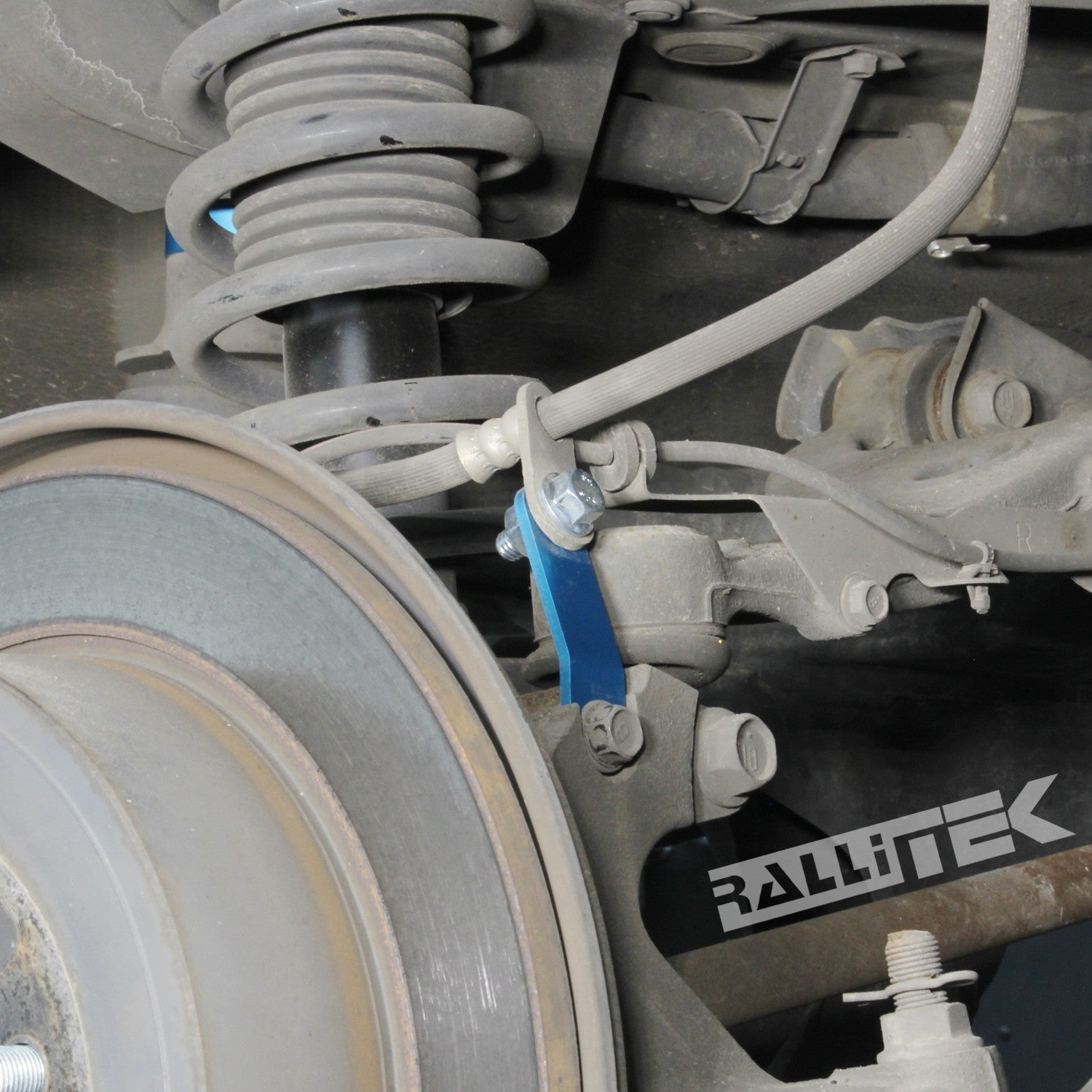

  • Brake line extension brackets included
  • 2018-2026 kit includes two rear adjustable endlinks, 2013-2017 kit is the subframe drop only
  • Bolt-on install, about 2 hours with basic tools
  • Made in the USA with a lifetime warranty
  • For vehicles lifted more than 1 inch, off-road use only
